China CNC Polishing Machine, Automatic Polishing System for Precision Surface Finishing of Metal and Stainless Steel Bent Pipes Suppliers, Exporters

1 / 5

China CNC Polishing Machine, Automatic Polishing System for Precision Surface Finishing of Metal and Stainless Steel Bent Pipes Suppliers, Exporters

â— The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.

â— With Italy advanced PROMAX control system for high precision of control and high stability of move technology, stable process, high control accuracy.

Send Inquiry

Product Description

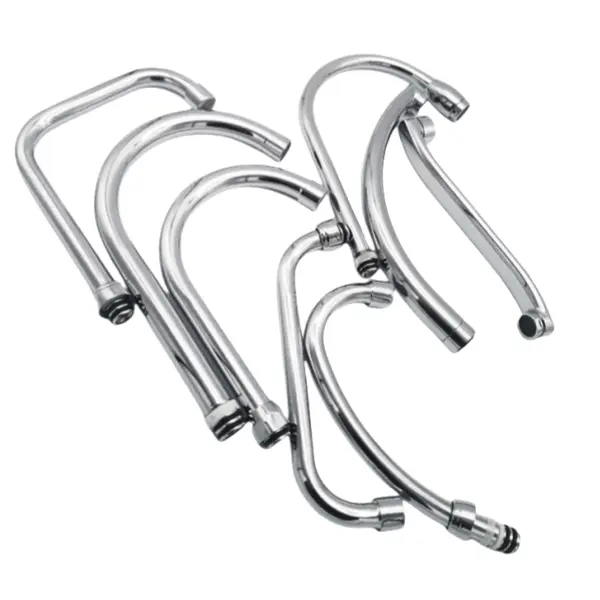

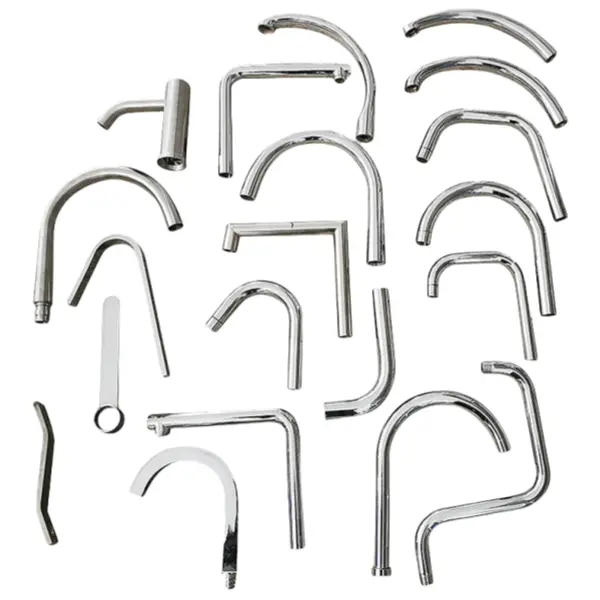

Finished Samples

Product Introduction

◈ The machine equips with 6 NC axes. Can finish the polishing and buffing of 4 work pieces in one time.

◈ With Italy advanced PROMAX control system for high precision of control and high stability of move technology, stable process, high control accuracy.

◈ Software: Programmable, with portable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

◈ Polishing pressure and wear compensation control performance: System detects torque changes for automatic compensation in all directions when wheels wear down.

◈ Linear speed compensation: System automatically increases speed and compensation as wheel diameter reduces.

◈ Supports both solid and liquid polishing wax with adjustable spraying cycles and frequency.

◈ Full digital control: Storage of 50 to 125 polishing programs adjustable at any time.

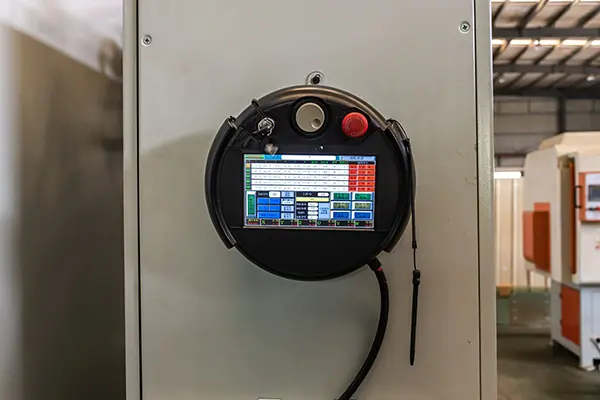

◈ CN/EN language display on Touch Panel for easy operation and troubleshooting with fault codes.

◈ Equipped with fixture wear-resistant sleeves ensuring a cycle of more than 6 months.

Applications

Suitable for polishing and finishing various metal components:

✔Faucets and Water Taps

✔Automobile spare parts (Bumpers, rims, bars)

✔Locks, door handles, and hinges

✔Brass castings and Zamak handles

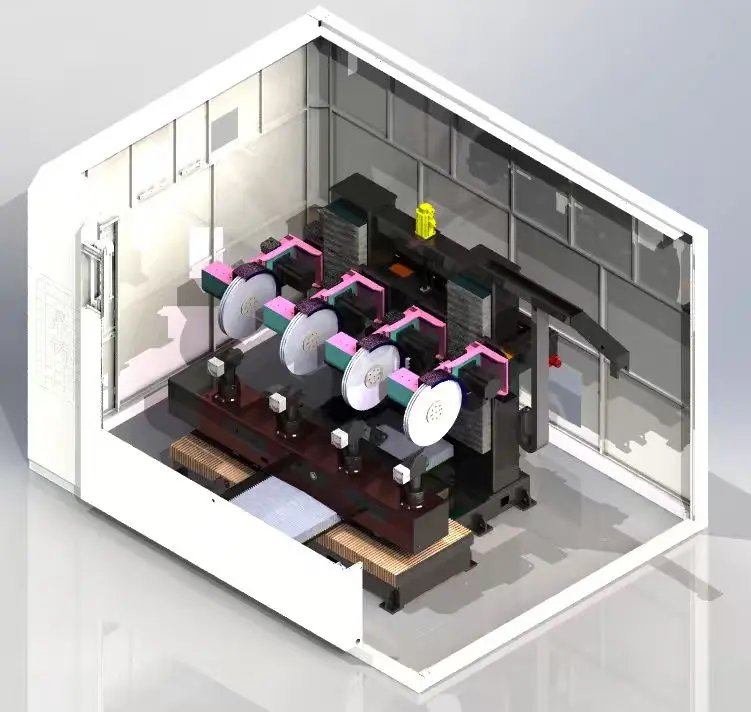

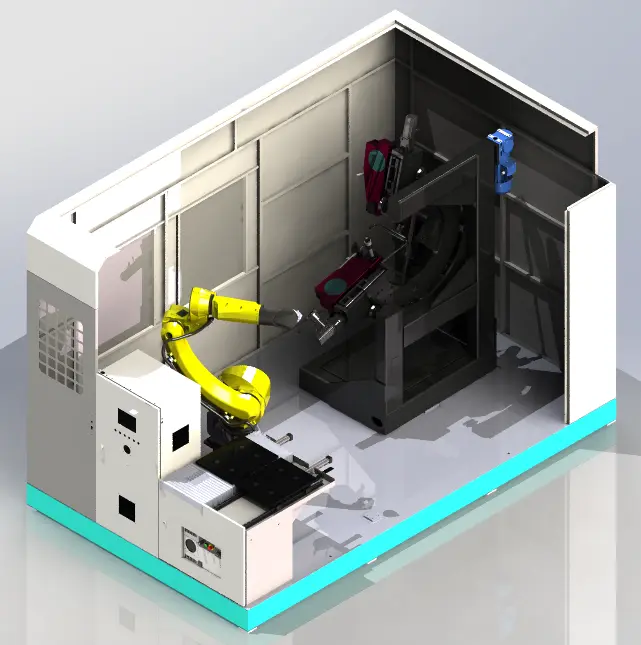

Machine Layout

Technical Parameters

Code	Items	Parameters
1	Dimensions (LWH)	4000 * 3400 * 3000 mm
2	Machine Power	35 kW
3	Rated Voltage	380 V
4	Max. Polishing Wheel Diameter	600 mm
5	Min. Polishing Wheel Diameter	400 mm
6	X-Axis Travel	1000 mm
7	Y-Axis Travel	900 mm
8	Z-Axis Travel	700 mm
9	U-Axis Travel	±90°
10	V-Axis Travel	±360°
11	W-Axis Travel	±720°
12	Program Capacity	Up to 125 programs
13	Polishing Wax	Solid or Liquid

Warranty & Service

Code	Items	Details
1	Machine Warranty	12 months
2	Response Time	Within 24 hours
3	Installation	Included up to 10 days at site

Notes

1. Includes 1 set of fixtures, buffs, and polishing wax.

2. Payment: 50% deposit after contract; 50% before delivery.

3. Standard delivery time: 90 days after confirmation.

Production Environment

Global Experience

Packing & Delivery

Frequently Asked Questions

Q1: How many workpieces can the machine polish simultaneously?

A1: The machine is equipped with 6 NC axes and can finish the polishing and buffing of 4 workpieces at one time.

Q2: What control system does the equipment use?

A2: It uses the advanced Italy PROMAX control system, ensuring high precision and stable movement technology.

Q3: How does the machine handle polishing wheel wear?

A3: The system automatically detects torque changes when the wheel is worn out and applies compensation in all directions, including linear speed compensation.

Q4: What types of products are suitable for this machine?

A4: It is ideal for faucets, automobile parts (bumpers, rims), door handles, locks, and various brass or aluminum castings.

Q5: Can I use different types of polishing wax?

A5: Yes, the machine supports both solid polishing compounds and liquid wax, with programmable spraying cycles and frequencies.

Q6: Is the operation interface available in English?

A6: Yes, the touch panel features a CN/EN language display for easy parameter setting and troubleshooting.
